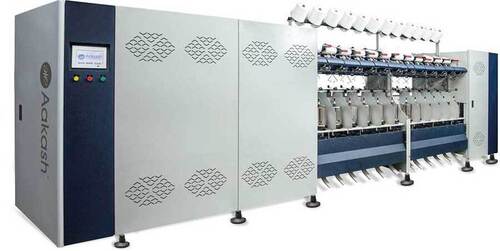

Doubler (Emb. Yarn)

Doubler (Emb. Yarn)

Product Details:

X

Product Description

Technical specification

NO.OF SPINDLES(PRIMARY)

144

160

176

192

208

224

240

256

272

NO.OF SPINDLES(SECONDARY)

90

100

110

120

130

140

150

160

170

LENGTH OF MACHINE(FT)

45.75

50.10

55.0

59.50

64.10

68.70

73.20

77.80

82.50

NO.OF SECTION

9

10

11

12

13

14

15

16

17

CONNECTED POWER(H.P)

3.5/4.0

3.5/4.0

4.0/5.0

4.0/5.0

5.0/5.0

5.0/7.5

5.0/7.5

75/100

75/100


PRIMARY

SECONDARY

CONSTRUCTION

DOUBLE DECK BOTH SIDE


SECTION PITCH

1397 MM

1397 MM

SPINDLE PITCH

165 MM

275 MM

TAKE UPSYSTEM

CRADLE WITH AUTO-PRESSURE ADJUSTMENT AGAINST PACKAGE BUILT-UP


SPOOL

DOUBLE FLANGE BOBBINS

DIA 57 /DIA 69 ID X 175,210,230 L TUBE

SHAPE

DOUBLE FLANGE BOBBIN

CYLINDRICAL / BICONICAL

FEED TUE

PLAIN COPS / SINGLE FLANGE BOBBINS

DOUBLE FLANGE BOBBINS

CONTENT

UPTO 750 GMS MAX

UPTO 1500 GMS

DIA (MAX)

DIA 85 MM

DIA 110 MM

TRAVERSE SYSTEM

COMMON

COMMON

FEED TENSIONER

BALL/ CERAMIC CUP

BALL / CERAMIC CUP WITH FLIER

DENIER RANGE

30 TO 600

60 TO 1800

VIABLE TPM RANGE

150 TO 2000

150 TO 2000

POT DIA

DIA 70 MM

DIA 110 MM

SPINDLE RPM

Up to 14000 MECHANICAL

Up to 10000 MECHANICAL

TAKE-UP SPEED

UPTO 60 M / MIN

UPTO 50 M / MIN

MACHINE WIDTH

800 MM


MACHINE HEIGHT

1860MM




AAKASH TEXTILE ENGINEERS LLP
