Filament Yarn TFO

15000000 INR/Set

Get a Price/Quote

Product Details:

Hook Double Hook System
Frequency 50 Hz Megahertz (MHZ)
Product Type Other
Material Stainless Steel
Machinery Type Other
Capacity High Speed Production Kg/hr
Voltage 220-240 V Megaampere ( MA)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Filament Yarn TFO Price And Quantity

Minimum Order Quantity 1 Set
Price 15000000 INR/Set

Filament Yarn TFO Product Specifications

Capacity High Speed Production Kg/hr
Warranty 1 Year
Frequency 50 Hz Megahertz (MHZ)
Weight Heavy Duty Drams (dr)
Color White
Dimension (L*W*H) Customizable Micromete (micron)
Hook Double Hook System
Product Type Other
Material Stainless Steel
Machinery Type Other
Power 3.5 KW Ampere (amp)
Voltage 220-240 V Megaampere ( MA)

Filament Yarn TFO Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID)
Main Export Market(s) Asia, South America, Africa
Main Domestic Market , All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Product Description

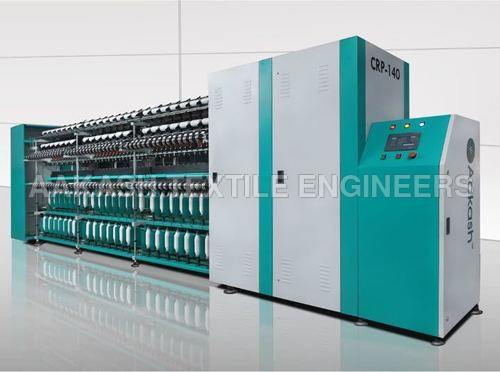

The textile sector uses this Crepe Texturising Machine to provide textiles with a crepe or crinkled feel. As a result of the machine's employing multiple mechanical processes that modify the shape and look of textiles, the resulting final textile goods have characteristic textured patterns that can be both aesthetically pleasing and functional. Crepe, georgette, and various other fabrics that are frequently employed in clothing, household textiles, and various other applications are produced with this crepe texturising machine.

NO. OF SPINDLES	280	308	336	364	392	420	448
NO. OF SECTIONS	10	11	12	13	14	15	16
LENGTH OF MACHINE (FEET)	55.6	60.6	65.6	70.6	75.6	80.6	85.5
CONNECTED POWER (HP)	4 x 2	4 x 2	4 x 2	5 x 2	5 x 2	5 x 2	7.5 x 2
Spindle / Section (Length)	28 (1524 MM)
Spindle Pitch	210 MM
Take-up System	HINGE CRADLE WITH BALL AND TUBE CAP
Tube	57/69 X 175 MM LENGTH
Content	UP TO 1500 GM
D/F Bobbin	79 X 134 X 160 MM TRAV
Content	1000 GM
Pot Diameter	70 MM / 80 MM / 90 MM
Feed Tube	32 X 36 X 270 / 280 / 300 MM COPS TUBE
Content	UP TO 750/1000 GM
Dia (Max)	85/95 MM
Take - Up Traversing	COMMON,SUIT ABLE FOR CYLINDRICAL OR BICONICAL
Feed Tensioner	CERAMIC TENSIONER
Denier Range	20 TO 300
Viable TPM Rang	250 TO 4000
Spindle RPM	16000 MECH / 14000 PROCESS
Yarn Take - Up Speed	45 METRE / MIN
Machine Width	825 MM.
Machine Height	1825 MM.
PRODUCTION CAPACITY :
R.P.M	PRODUCTION IN KGS / SPINDLE / DAY
12000	3.84 X DENIER / T.P.M.
10000	3.20 X DENIER / T.P.M.
